Get Ready to Pass the JN0-649 exam Right Now Using Our JNCIP-ENT Exam Package

Enhance Your Career With Available Preparation Guide for JN0-649 Exam

Candidates for the Juniper JN0-649 Certification Exam should have experience working with Juniper Networks’ enterprise routing and switching technologies. They should have a good understanding of networking protocols, network design principles, and network troubleshooting techniques. It is also recommended that candidates have some experience with Juniper Networks’ network automation and scripting technologies. Passing the JN0-649 Certification Exam will authenticate the candidate’s expertise in enterprise routing and switching technologies, which can enhance their career opportunities and earning potential in the networking industry.

The Juniper JN0-649 exam is a challenging but rewarding certification exam for network engineers seeking to demonstrate their expertise in enterprise routing and switching. Passing the exam and obtaining the JNCIP-ENT certification can help professionals advance their careers and open up new opportunities in the field of network engineering.

QUESTION 30

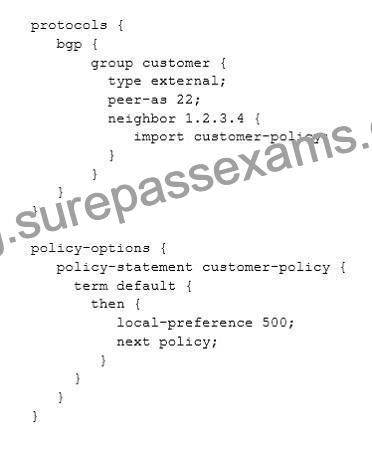

Click the exhibit.

Where is the policy shown in the exhibit enforced?

Between the RIB-LOCAL and the RIB-OUT tables

Between the RIB-OUT table and the BGP peer

Between the RIB-IN and the RIB-LOCAL tables

Between the BGP peer and the RIB-In table

QUESTION 31

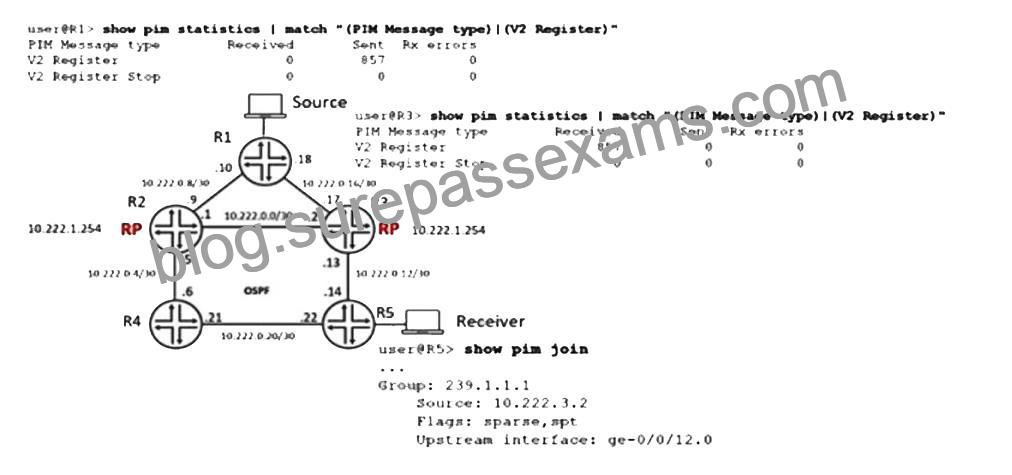

Referring to the exhibit, anycast RP is implemented to ensure multicast service availability. The source is currently sending multicast traffic using group 239.1.1.1 and R3 is receiving PIM register messages, but R2 does not have active source information.
In this scenario, what are two methods to receive the active source information on R2? (Choose two.)

Configure an RP set in PIM on R1, allowing R1 to forward PIM register messages to R2 and R3 in the set.

Configure an MSDP protocol between R2 and R3.

Configure an RP set in PIM on R2 and R3, allowing the RPs to forward PIM register messages to the other RPs in the set.

Configure an MSDP protocol between R1 and R2.

https://www.juniper.net/documentation/us/en/software/junos/multicast/topics/ref/statement/rp-set-edit-protocols-pim.html

QUESTION 32

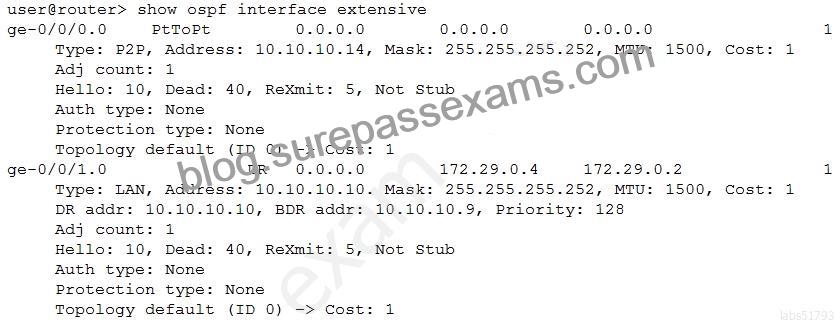

Referring to the exhibit, which two statements are true? (Choose two)

There can be more than one OSPF neighbor on the ge-0/0/0 interface

There can be more than one OSPF neighbor on the ge-0/0/1 interface.

There is no need for a DR for the ge-0/0/0 interface.

The DR election process is not finished for the ge-0/0/0 interface

QUESTION 33
You have configured CoS on a Junos device. A packet is classified as best effort by a behavior aggregate (BA) classifier, and as expedited forwarding by a multifield (MF) classifier.
Which statement is true in this scenario?

The packet will be placed in a queue associated with the BA classifier.

The packet will be placed into the queue which is least congested.

The packet will be placed into the queue that has the most bandwidth assigned to it.

The packet will be placed in a queue associated with the MF classifier.

https://www.juniper.net/documentation/en_US/junos/topics/task/configuration/cos-configuring- multifield-classifiers.html
>> “If you configure both a behavior aggregate (BA) classifier and a multifield classifier, BA classification is performed first; then multifield classification is performed. If they conflict, any BA classification result is overridden by the multifield classifier.”

QUESTION 34
You are asked to implement fault tolerant RPs in your multicast network. Which two solutions would accomplish this behavior? (Choose two.)

Use BFD with statically defined RPs.

Use MSDP with statically defined RPs.

Use anycast PIM with statically defined RPs.

Use IGMPv3 with statically defined RPs.

QUESTION 35

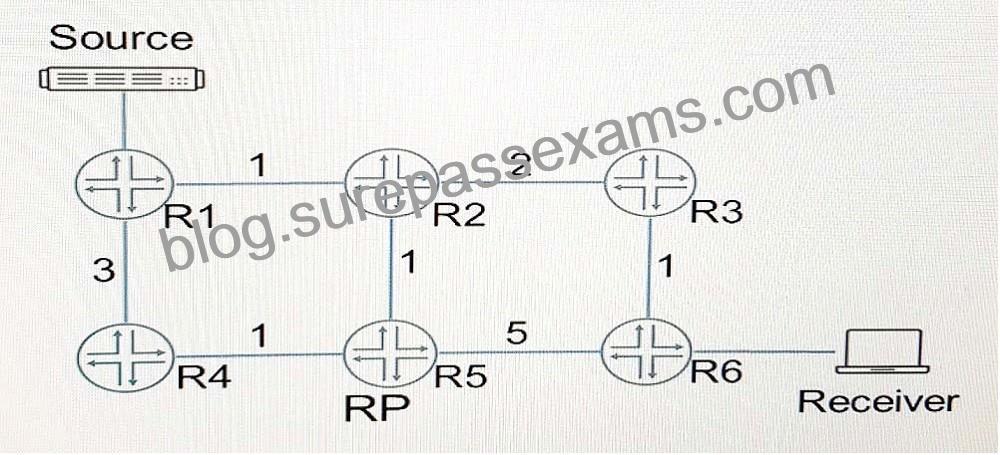

You have deployed sparce-mode multicast in your network using the IGP metrics shown in the exhibit.

Which path will (*, G) traffic follow form the source to the receiver before the (S, G) state is registered?

Source, R1, R4, R5, R6, Receiver

Source, R1, R2, R5, R2, R3, R6 Receiver

Source, R1, R2, R3, R6, Receiver

Source, R1, R2, R5, R6, Receiver

QUESTION 36
You are deploying new Juniper EX Series switches in a network that currently is using Cisco’s Per- VLAN spanning tree plus (PVST+) and you must provide compatibility with this environment.
Which spanning tree protocol do you deploy in this scenario?

STP

MSTP

VSTP

RSTP

QUESTION 37
Which protocol is used for port-level access control and authentication?

MD5

IPsec

802.1x

AES

QUESTION 38
Packets enter a Juniper device and are classified as best effort. During the processing of the packet, the classification of the packets is changed to expedited forwarding by a multi-field classifier. The device is using the default CoS policies Which statement is true in this scenario?

The packet is forwarded according to the new packet classification, and the DSCP bits are rewritten to the new class.

The packet is forwarded according to the new packet classification, and the DSCP bits do not change.

The packet is forwarded according to the original packet classification, and the DSCP bits do not change.

The packet is forwarded according to the original packet classification, and the DSCP bits are rewritten to the new class.

QUESTION 39
Referring to the exhibit, there are multiple ASM groups in the 224 0 0.0/4 range Which configuration change is needed to ensure R1 is always the RP for group 224.224.1.1?

Increase the priority on R1 to higher than R2

Configure R1 with a higher local RP address

Set the priority on R1 to zero

Ensure R1 has a more specific group range

QUESTION 40

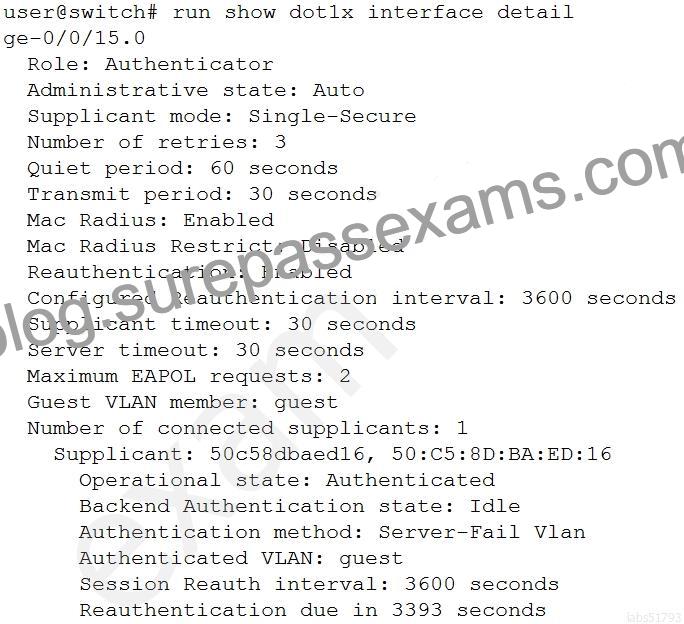

You are authenticating user devices connected to your ex Series switch. You have 802.1X and MAC RADIUS configured for all ports. A user is complaining about the time it takes to connect their non- 802.1X device on ge-0/0/15 using MAC RADIUS authentication.
Referring to the exhibit, what should be done to accelerate the authentication process?

Change the supplicant mode to multiple on ge-0/0/15

Configure the no-reauthentication feature for 802.1X on ge-0/0/15

Configure the restrict feature for MAC RADIUS on ge-0/0/15.

Change the 802.1X retry attempts value to 5 on ge-0/0/15

QUESTION 41

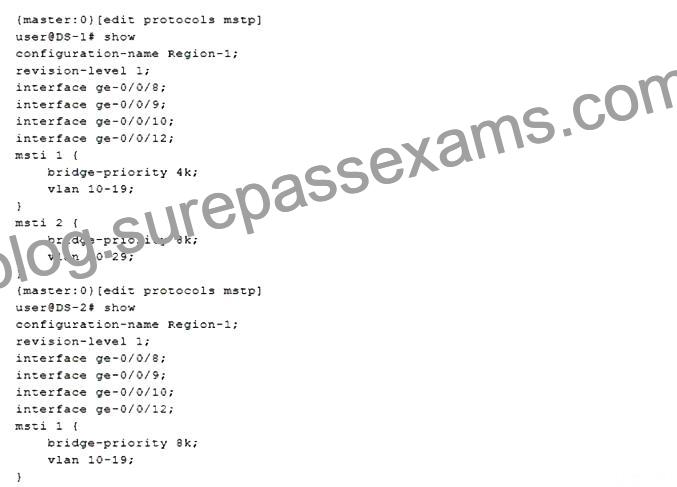

Referring to the exhibit, which two statements are correct? (Choose two.)

The DS-2 switch will be root bridge for MSTI 2.

The DS-1 switch will be root bridge for MSTI 1.

The DS-1 switch will be root bridge for MSTI 2.

The DS-2 switch will be root bridge for MSTI 1.

Bridge priority is to determine which bridge becomes the designated bridge.

QUESTION 42
In a Layer 2 environment where 802.1X is deployed, which two statements are correct? (Choose two.)

RADIUS messages are exchanged between the supplicant and the authenticator.

RADIUS messages are exchanged between the authenticator and the authentication server.

Extensible Authentication Protocol messages are exchanged between the authenticator and the authentication server.

Extensible Authentication Protocol messages are exchanged between the supplicant and the authenticator.

https://en.wikipedia.org/wiki/IEEE_802.1X

QUESTION 43
Your IPv4 multicast network uses different MX Series routers for the source DR and the PIM sparse-mode RP.
What is required before PIM register messages are exchanged between the DR and RP routers?

Add a tunnel services PIC to the RP router.

Add an adaptive services PIC to the DR router.

Enable tunnel services on the DR and RP routers.

Configure PIM encapsulation on the DR and RP routers.

QUESTION 44

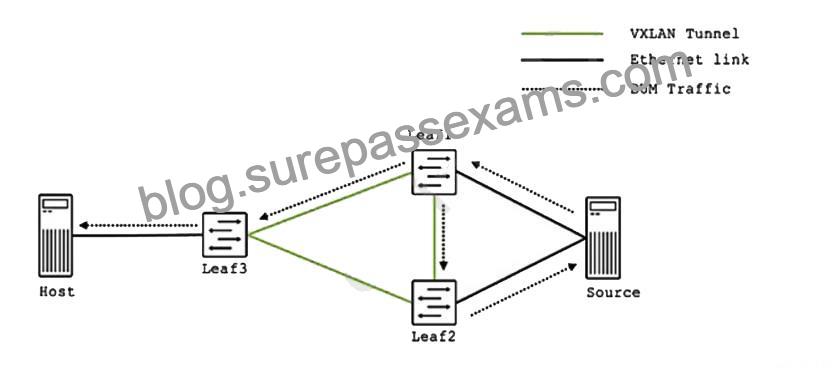

You are troubleshooting an EVPN-VXLAN IP fabric and observe the loop shown in the exhibit.
Which two steps would you take to further troubleshoot this problem? (Choose two.)

Verify that the same ESI is configured on the link from the host and that it matches the source.

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 4 routes are present.

Issue the show route table bgp.evpn.0 command on Leaf2 and verify that Type 3 routes are present.

Verify that the same ESI is configured on the two links from the source.

Type 2 route, MAC with IP advertisement route-Type 2 routes are per-VLAN routes, so only PEs that are part of a VNI need these routes. EVPN allows an end host’s IP and MAC addresses to be advertised within the EVPN Network Layer reachability information (NLRI). This allows for control plane learning of ESI MAC addresses. Because there are many Type 2 routes, a separate route-target auto-derived per VNI helps to confine their propagation. This route type is supported by all EVPN switches and routers. Type 5 route, IP prefix Route-An IP prefix route provides encoding for inter-subnet forwarding. In the control plane, EVPN Type 5 routes are used to advertise IP prefixes for inter-subnet connectivity across data centers. To reach a tenant using connectivity provided by the EVPN Type 5 IP prefix route, data packets are sent as Layer 2 Ethernet frames encapsulated in the VXLAN header over the IP network across the data centers.

QUESTION 45
Which protocol allows a switch to pass configuration information to an IP phone?

BFD

IPv6

LLDP-MED

VCCP

QUESTION 46
Which three MSTP parameters must match on all switches in the same MST region? (Choose three.)

forwarding delay

bridge priority

revision number

MSTI-to-VLAN mapping

configuration name

https://www.juniper.net/documentation/us/en/software/junos/stp-l2/topics/topic-map/spanning-tree-configuring-mstp.html
