Q150. Refer to the exhibit.

Refer to the exhibit. An engineer deployed a VXLAN fabric with this configuration:
* interface VLAN 100 on VTEP1 with no IP address
* interface VLAN 200 on VTEP4 with no IP address
Which set of actions must the engineer take to ensure that host A communicates with host B?

Q151. A large financial institution hosts all customer data in a critical data center with a single physical location Top management is concerned about the risk of a single-site failure. Dot budget is also an issue, so the network engineering team is working to implement a cost-effective redundancy strategy with a second data center. The new data center must use a three-tier design Identical to the existing data center. Business requirements dictate that all data must always be accessible from anywhere in the world, even It a single site fails. The team purchased two Cisco Nexus 7700 Series Switches and four Catalyst 8000 Series Routers. Which action must the team take to accomplish the goal?

Q152. What are two advantages of using Cisco vPC over traditional access layer designs? (Choose two.)

Q153. Which two features are provided by deploying an OOB management network in a Cisco Nexus data center? (Choose two.)

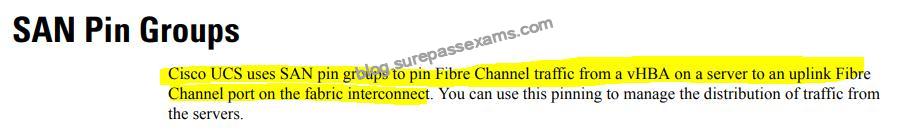

Q154. A network architect proposes a distinct Fibre Channel fabric to be used for a Cisco UCS blade server that hosts critical applications. Which action should be implemented for the fibre Channel traffic from the vHBA of this service to pass through the I/O module in the Cisco chassis to a specified uplink Fibre Channel port?

Q155. A customer needs to deploy a three-tier network architecture that will consist of web, and other business- critical applications. The solution will include Cisco UCS 6324 Fabric interconnects managing B and C Series servers The Fabric interconnects will be connected to the cisco nexus 7706 series switch for network access.
A storage array will be directly connected to the UCS deployment. Which type must be used to meet these requirements?

Q156. An engineer must design a Cisco HyperFlex solution to support a virtualized environment in a single data center location. The design must consider these customer requirements:
– a large-scale cluster with eight or more nodes
– distributed high-performance file system for virtualized servers
– high fault tolerance to multiple node failures
Which action meets these objectives?

Q157. A network administrator must create a redundant vHBA for the mission-critical virtual machines (VMs) installed on a Cisco UCS Fabric Interconnect blade server. The VMs access multiple datastores using VSAN55 and VSAN95. The datastore on which the VMs are hosted must be accessible if any of the uplinks goes offline. Which action meets these requirements?

Q158. A network engineer designs a Cisco Nexus data center network for a client-server farm using a pair of Nexus 9000 Series. Switches In a vPC setup. Each server connects with two interfaces to both Nexus switches. The Nexus switches must always initiate the negotiation with the server. Which feature should be used in this design to ensure traffic is forwarded from the server to the data center network?

Q159. A database administrator experiences delay when performing storage replication between primary and secondary data centers. The data centers are located 20 kilometers apart and are connected using a 500 Mbps link. The deployment was implemented using an FCIP tunnel and a pair of Cisco MDS 9250 Series Switches.
The network engineer decided to enable QoS to prioritize replication traffic. Which QoS model must be used to resolve the performance issues?

Q160. Which mode must be enabled on a Cisco UCS Fabric Interconnect to connect directly to a storage array?

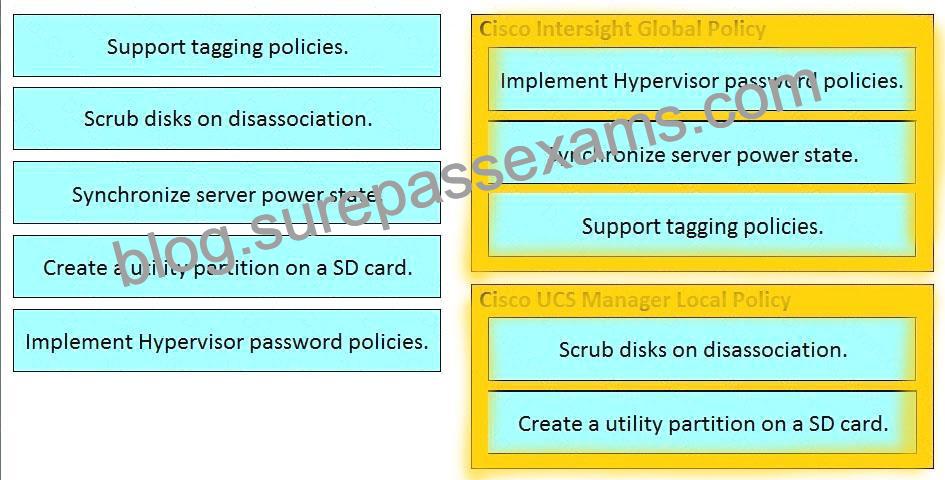

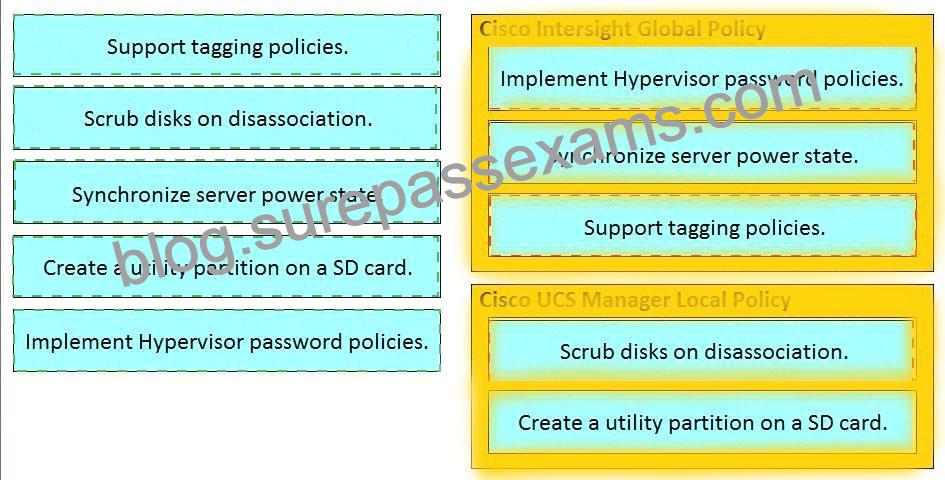

Q161. Drag the requirements from the left onto the correct policy types on the right.

Q162. Refer to the exhibit.

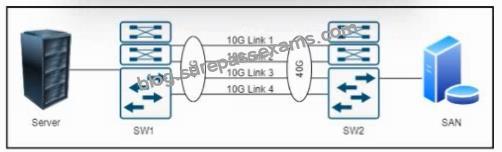

Refer to the exhibit. A 4x10G Fibre Channel has been configured between SW1 and SW2 to carry backup traffic sourced to and from the SAN. An engineer noticed that 10G Link 1 is being used more heavily than the other links within the port channel. Which action must the engineer take on the two switches to ensure that the traffic uses all available links between SW1 and SW2?

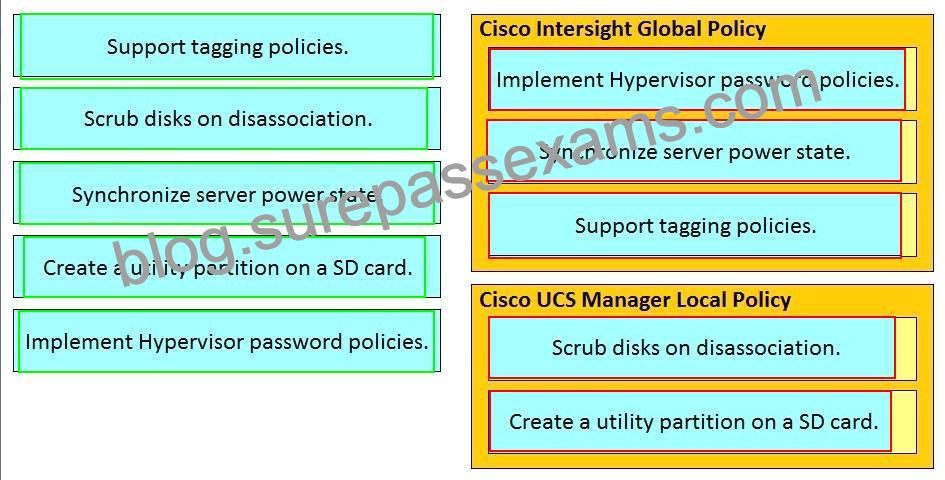

Q163. Drag the requirements from the left onto the correct policy types on the right.

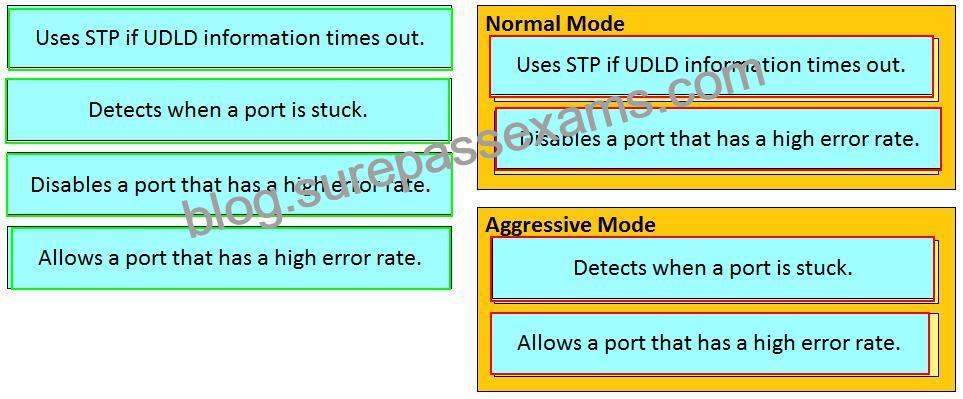

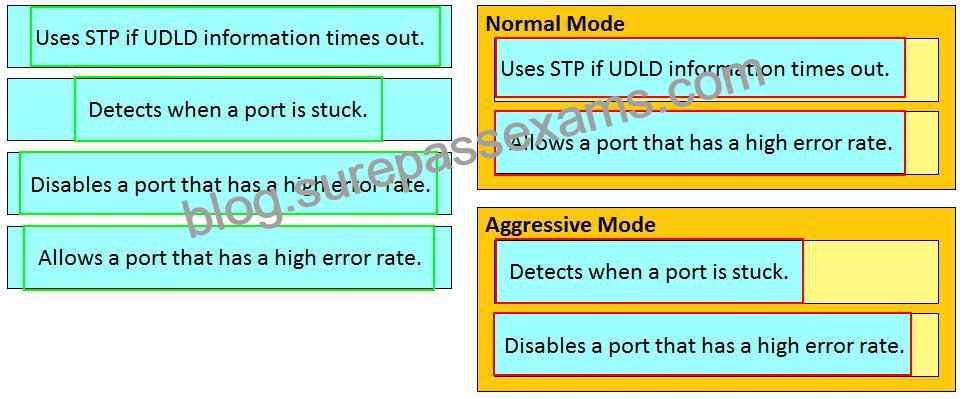

Q164. Drag the appropriate from the left onto the current UDLD modes of operation on the right.

Q165. The user traffic destined to all web servers located in the data center must pass first through a set of firewalls for deep packet inspection. A network architect must design the Cisco Intelligent Traffic Director (ITD) deployment that meets these requirements:
– The firewalls are connected to a set of two Cisco Nexus switches to
provide stateful handling of traffic.
– The ITD service is provided for inside and outside segments of the
firewall.
Which ITD deployment mode must be implemented to meet these requirements?

Q166. An architect must automate routine tasks within a data center. The data center exclusively uses Cisco Nexus Series Switches. The networking team lacks proper programming knowledge and prefers an automation solution that leverages NXOS commands. Any configuration change must use HTTPS for transport due to a security compliance requirement.
Which solution must the architect choose?

Q167. Which two statements describe Ethernet switching mode on Cisco UCS 6100 Series Fabric Interconnects?
(Choose two.)

Q168.

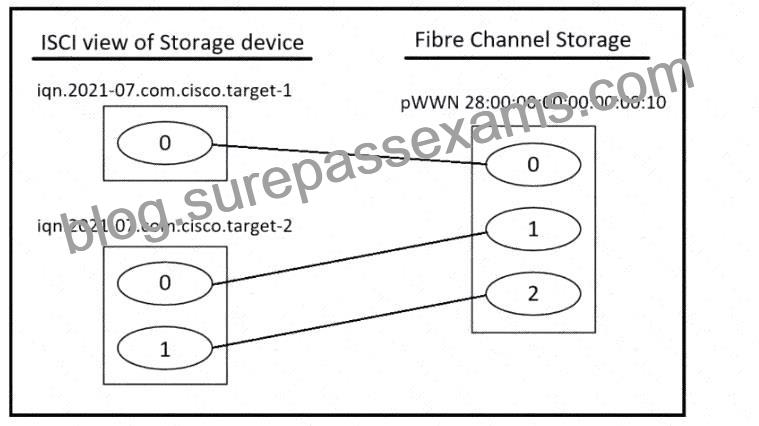

Refer to the exhibit. An engineer working for a service provider with an employee ID: 4800:35-849 must perform the mapping of Fibre Channel LUN targets lo the indicated iSCSI virtual target. Which configuration shows the requited mapping?

Q169. Which element is the main functional component of the architecture that separates the internal fabric and the external network that connects sites when VXLAN EVPN is deployed multisite?

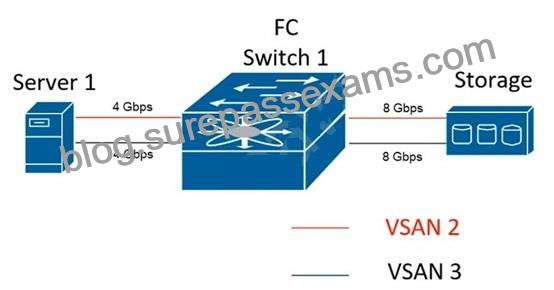

Q170. Refer to the exhibit.

Server 1 fails to connect to the storage array over the Storage Area Network (SAN) of the Cisco NDS 9000 Series Switch. The requirements are to redesign the storage network and keep these considerations in mind:
The traffic from each of the server must be redundant and isolated.
The design must tolerate hardware and software failures and upgrades of SAN fabric devices.
Which action must be taken to meet these requirements?

Q171. What are two reasons to select OTV as the DCI solution to connect multisite topologies? (Choose two.)

Q172. A client in a commercial building Installs a Cisco blade server in the multitenant Cisco UCS blade Infrastructure. To cut operating costs me client’s data center is shared with other organizations. The client asks an engineer prevent third parties from accessing their equipment and from accessing BlOS-related information when booting a server. Which Two policies must be used to meet these requirements? (Choose two.)

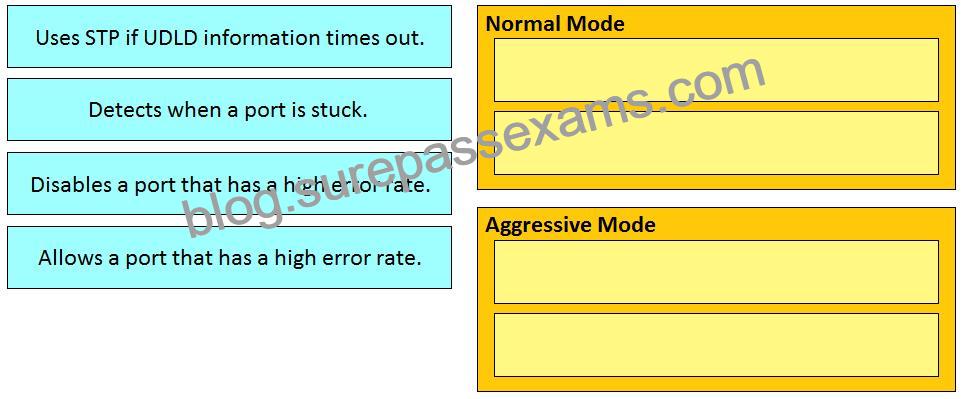

Q173. Drag the appropriate from the left onto the current UDLD modes of operation on the right.

Q174. A network engineer is implementing Cisco UCS manager with Cisco UCS center integration. The company is strict security policies require that the logical profile of virtual network adapters and logical addressing assigned to Cisco UCS servers be managed by the Cisco UCS manager. The users must also be prevented from being able to acknowledge pending activities in the Cisco UCS manager. Which two profile must be used to meet these requirements? (Choose two.)
