* Type 2 EVPN Routes:
* Type 2 routesadvertise MAC addresses within an EVPN instance and are used primarily for Layer 2 bridging. These routes do not require a VXLAN tunnel to the protocol next hop because they operate within the same Layer 2 domain.
* Type 5 EVPN Routes:
* Type 5 routesare used to advertise IP prefixes (Layer 3 routes) within EVPN. Similar to Type 2 routes, they do not require a VXLAN tunnel to the protocol next hop because they represent L3 routes, which are managed at the routing layer without the need for VXLAN encapsulation.
Conclusion:
* Option B:Correct-Type 2 routes do not need a VXLAN tunnel to the next hop, as they are used for Layer 2.
* Option D:Correct-Type 5 routes also do not need a VXLAN tunnel because they operate at Layer 3, handling IP prefixes.

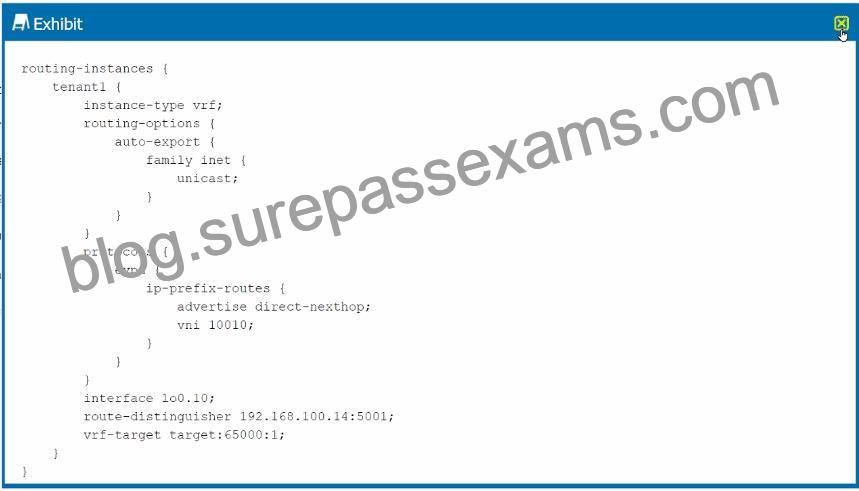

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis:
* Understanding EVPN Type 5 Routes:
* EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
* VRF Target Setting:
* The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this:
move vrf-target target:65000:1 to evpn
* Other Options:
* Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
* Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
* Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.

* Understanding Bridged Overlay Architecture:
* In a single-tenant data center using a bridged overlay architecture, virtual networks (VLANs) are typically isolated within the fabric, with traffic between these VLANs handled outside the fabric.
* Communication Between Different Virtual Networks:
* A. off-fabric using an external device:This is correct. In many bridged overlay architectures, communication between different virtual networks is handled off-fabric, often using an external router or firewall that connects the different VLANs. The fabric itself primarily provides Layer 2 connectivity within each VLAN, leaving inter-VLAN routing to be handled externally.
Data Center References:
* This design is common in smaller or simpler data center environments where a single tenant does not require complex on-fabric routing and prefers to handle inter-VLAN routing through dedicated devices.

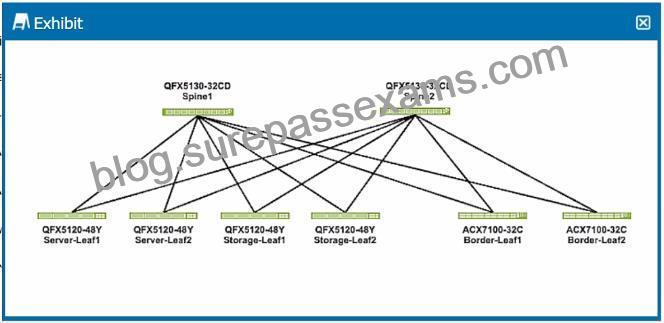

* Understanding Oversubscription Ratio in IP Fabrics:
* The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.
* Impact of Adding or Removing Leaf Devices:
* Removing Leaf Devices:When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio toincreasebecause there is now less total bandwidth to distribute across the same amount of spine bandwidth.
* Adding Leaf Devices:Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.
Conclusion:
* Option C:Correct-Removing leaf devices increases the oversubscription ratio.
* Option D:Correct-Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.

* Understanding Seamless Stitching:
* Seamless stitching is used in EVPN to interconnect two data centers, allowing for consistent Layer 2 and Layer 3 connectivity across them. This is often achieved by translating VNIs (Virtual Network Identifiers) between the data centers.
* Translation-VNI:
* Option B:The translation VNI must be different in each data center to ensure that traffic can be correctly routed and distinguished as it crosses between the data centers. This differentiation helps to maintain the integrity of the traffic flows and prevents any potential overlap or conflict in VNIs.
* Ethernet Segment Identifier (ESI):
* Option D:The ESI must match in both data centers to ensure that the same Ethernet segment (which could be multihomed) is recognized consistently across the data centers. Matching ESIs are crucial for maintaining a unified view of the Ethernet segment across the interconnected fabric.
Conclusion:
* Option B:Correct-Translation VNIs must be unique to each data center for proper traffic distinction.
* Option D:Correct-Matching ESIs are necessary to maintain consistent Ethernet segment identification across both data centers.

* Load Balancing in VXLAN:
* VXLAN uses UDP encapsulation to transport Layer 2 frames over an IP network. For load balancing across Equal-Cost Multi-Path (ECMP) links, various fields in the packet can be used to ensure even distribution of traffic.
* Key Load Balancing Fields:
* C. The source port in the UDP header is used to load balance VXLAN traffic:This is correct.
The source UDP port in the VXLAN packet is typically calculated based on a hash of the inner packet’s fields. This makes the source port vary between packets, enabling effective load balancing across multiple paths.
* D. The inner packet fields are used in the hash for load balancing:This is also correct. Fields such as the source and destination IP addresses, source and destination MACaddresses, and possibly even higher-layer protocol information from the inner packet can be used to generate the hash that determines the ECMP path.
* Incorrect Statements:
* A. The inner packet fields are not used in the hash for load balancing:This is incorrect as the inner packet fields are indeed critical for generating the hash used in load balancing.
* B. The destination port in the UDP header is used to load balance VXLAN traffic:This is incorrect because the destination UDP port in VXLAN packets is typically fixed (e.g., port 4789 for VXLAN), and therefore cannot be used for effective load balancing.
Data Center References:
* Effective load balancing in VXLAN is crucial for ensuring high throughput and avoiding congestion on specific links. By using a combination of the source UDP port and inner packet fields, the network can distribute traffic evenly across available paths.

* Telemetry Methods in Junos:
* Telemetry is used to collect and report data from network devices. For high-frequency statistics reporting, such as every five seconds, you need a telemetry method that supports this level of granularity and real-time monitoring.
* Junos Native Sensors:
* Option C:Native Sensors in Junos provide detailed, high-frequency telemetry data, including TX and RX traffic statistics for interfaces. They are designed to offer real-time monitoring with customizable sampling intervals, making them ideal for the five-second reporting requirement.
Conclusion:
* Option C:Correct-Native Sensors in Junos are capable of providing the required high-frequency telemetry data every five seconds.

* Telemetry in Data Centers:
* Telemetry allows for real-time monitoring of network devices by collecting and exporting data such as interface statistics, routing table updates, and other key metrics.
* Vendor-Neutral Data Models:
* Option A:JTI (Junos Telemetry Interface) OpenConfig sensors use a vendor-neutral data model, which is important for ensuring compatibility across different network devices and systems.
OpenConfig is an industry-standard model, which facilitates integration with various telemetry collection systems.
Conclusion:
* Option A:Correct-OpenConfig sensors provide a vendor-neutral solution for telemetry, ensuring broad compatibility and flexibility in data center environments.

https://www.juniper.net/documentation/us/en/software/nce/nce-225-bgp-unnumbered/index.html

* Review of the Exhibit:

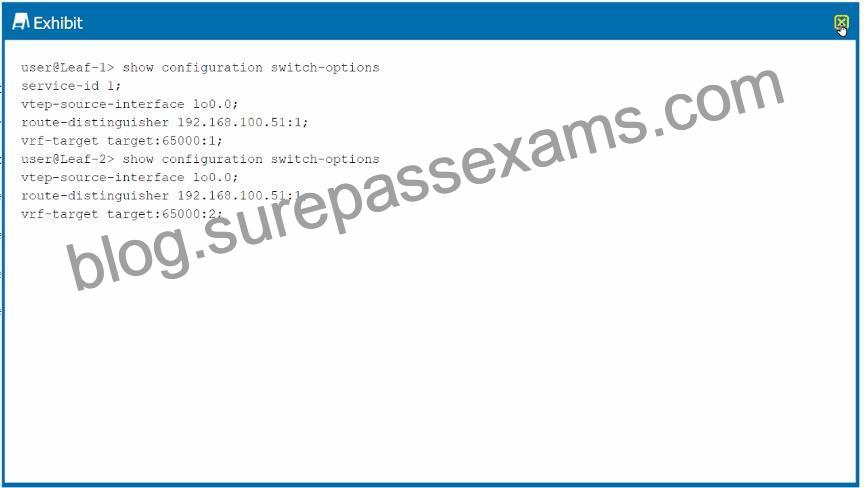

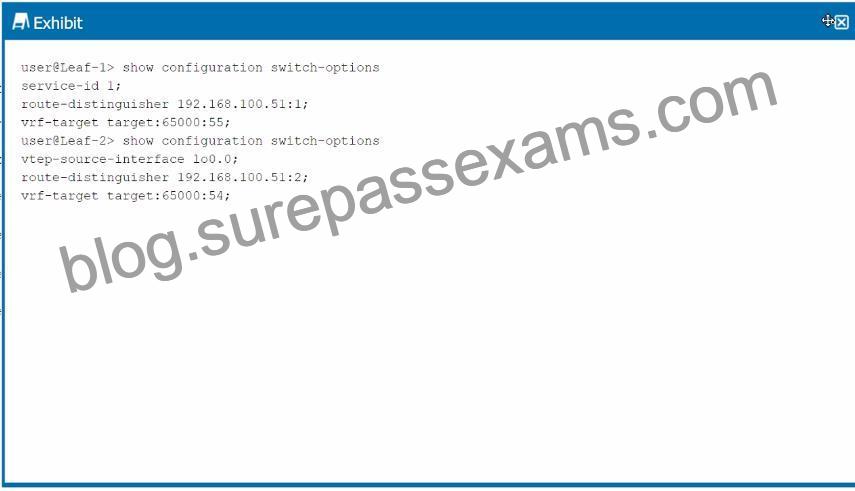

* The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.
* Service-ID Consistency:
* The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.
* VRF Target Consistency:
* The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.
Conclusion:
* Option B:Correct-Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.
* Option D:Correct-The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.

* Analyzing the Exhibit Output:

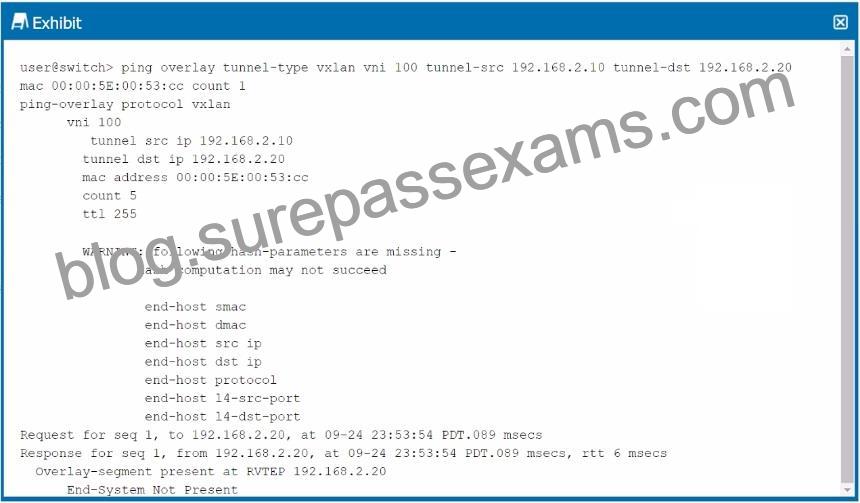

* The command ping overlay tunnel-type vxlan is used to test the VXLAN tunnel between two VTEPs (VXLAN Tunnel Endpoints). The output shows a warning about missing hash parameters, but more importantly, it displays the result: End-System Not Present.
* Understanding the Response:
* The message End-System Not Present indicates that the remote VTEP (192.168.2.20) did not find the MAC address 00:00:5E:00:53:CC in its forwarding table. This typically means that the MAC address is unknown to the remote VTEP, and as a result, it could not forward the packet to the intended destination.
Conclusion:
* Option B:Correct-The MAC address is unknown and is not in the forwarding table of the remote VTEP, which is why the system reports that the “End-System” is not present.

Understanding the Problem:
* Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.
Analysis of the Exhibit:

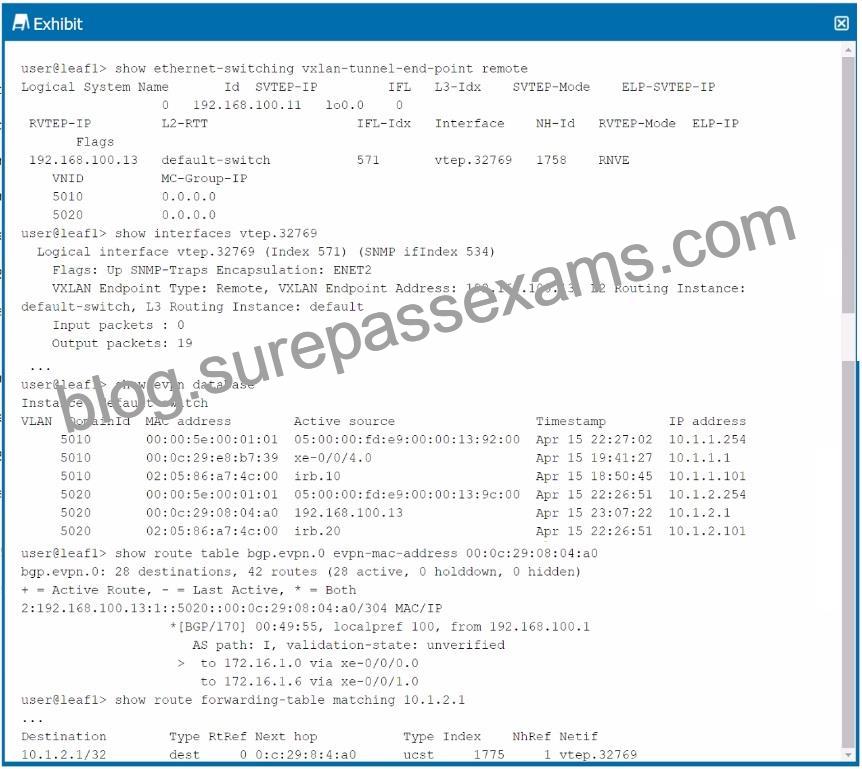

* The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).
Conclusion:
* Option B:Correct-The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.

* Zero Touch Provisioning (ZTP):
* Juniper Networks’ ZTP (Zero Touch Provisioning) process automates the deployment of new devices by allowing them to fetch and execute scripts for configuration and setup as they are powered on and connected to the network.
* Supported Scripting Languages:
* The Junos OS supports several scripting languages that can be used during the ZTP process:
* Shellscripts are often used for general automation tasks.
* Pythonis a widely supported language in Junos, offering powerful scripting capabilities for automating network tasks.
* SLAX(Service Logic Execution Environment) is a scripting language specific to Junos, designed to automate configuration tasks and simplify network operations.
Conclusion:
* Option D:Correct-Junos ZTP supports Shell, Python, and SLAX, making it the correct choice among the provided options.

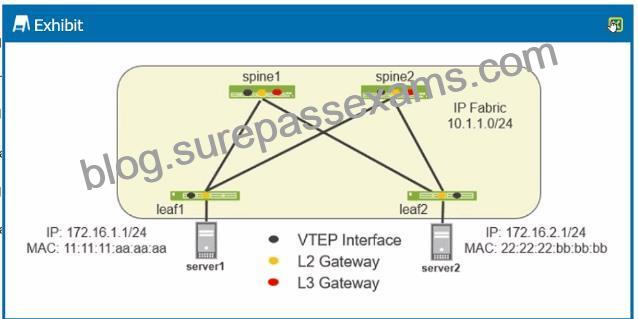

* Understanding ERB Architecture:
* ERB (Edge Routed Bridging) architecture is a network design where the routing occurs at the edge (leaf devices) rather than in the spine devices. In a VXLAN overlay network with EVPN as the control plane, leaf devices typically act as both Layer 2 (L2) and Layer 3 (L3) VXLAN gateways.
* Placement of VXLAN Gateways:
* Option B:All leaf devices will have L2 VXLAN gateways to handle the bridging of VLAN traffic into VXLAN tunnels.
* Option C:All leaf devices will also have L3 VXLAN gateways to route traffic between different VXLAN segments (VNIs) and external networks.
* Option E:Spine devices in an ERB architecture generally do not function as VXLAN gateways.
They primarily focus on forwarding traffic between leaf nodes and do not handle VXLAN encapsulation/decapsulation.
Conclusion:
* Option B:Correct-All leaf devices will have L2 VXLAN gateways.
* Option C:Correct-All leaf devices will have L3 VXLAN gateways.
* Option E:Correct-Spine devices will not act as VXLAN gateways

In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis:
* Understanding EVPN Type 5 Routes:
* EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
* VRF Target Setting:
* The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this:
move vrf-target target:65000:1 to evpn
* Other Options:
* Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
* Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
* Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.

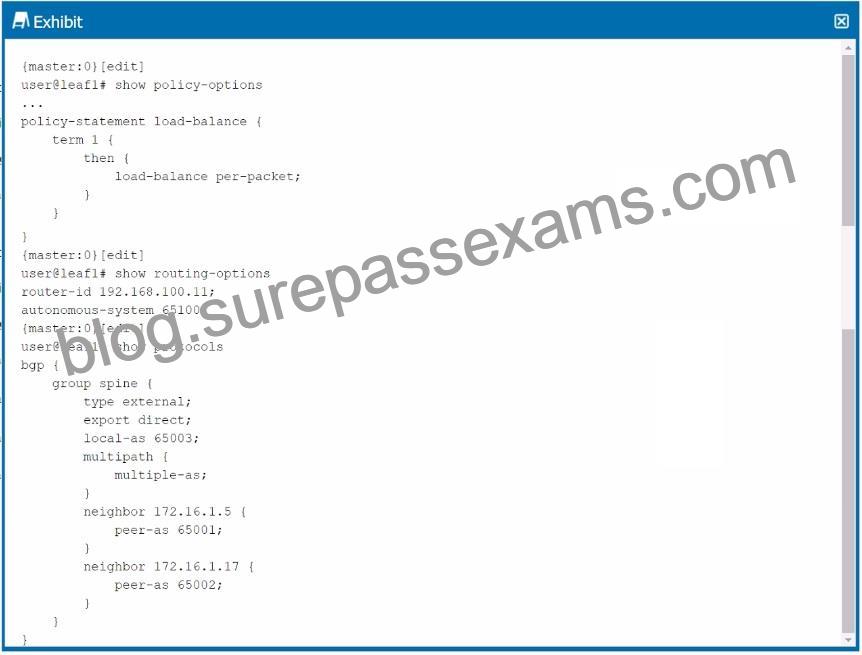

Step 1: Understand the Configuration in the Exhibit
The exhibit provides three configuration snippets from a leaf device (user@leaf#):
* Policy Options:
user@leaf# show policy-options
policy-statement load-balance {
term 1 {
then {
load-balance per-packet;
}
}
}
* A policy named load-balance is defined, which applies the load-balance per-packet action. In Juniper terminology, per-packet actually means per-flow load balancing (a common point of confusion). This policy is intended to enable load balancing across multiple paths.
* Routing Options:
user@leaf# show routing-options
router-id 192.168.100.11;
autonomous-system 65100;
* The router ID is set to 192.168.100.11, and the autonomous system (AS) number is 65100. There’ s no mention of applying the load-balance policy here, which is a clue to the issue.
* BGP Configuration:
user@leaf# show protocols
bgp {
group spine {
type external;
export direct;
local-as 65003;
multipath {
multiple-as;
}
neighbor 172.16.1.5 {
peer-as 65001;
}
neighbor 172.16.1.17 {
peer-as 65002;
}
}
}
* BGP is configured with an external group spine, where the leaf device (local AS 65003) peers with spine devices (AS 65001 and 65002).
* The multipath multiple-as statement is enabled, which allows BGP to install multiple paths for the same prefix in the routing table, even if the paths come from different AS numbers. This is a prerequisite for load balancing in a multi-AS environment like an IP fabric.
* The export direct policy is applied, which likely exports directly connected routes to the spine devices.
Step 2: Identify the Problem
The issue is that traffic from the leaf to the spine devices is not being load-balanced, despite the presence of a load-balance policy and BGP multipath. For load balancing to work in this scenario:
* BGP multipath ensures multiple paths are installed in the routing table.
* The load-balance per-packet policy is meant to distribute traffic across those paths.
* However, the load-balance policy is defined but not applied anywhere in the configuration shown. For load balancing to take effect, the policy must be applied in the correct context.
Step 3: Evaluate the Options
Let’s go through each option to determine the correct solution:
* A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.
* In Junos, to enable load balancing across multiple paths for forwarding, the load-balance policy must be applied at the forwarding table level. This is done under the routing-options hierarchy using the forwarding-table export statement. For example:
set routing-options forwarding-table export load-balance
* This ensures that the load-balancing policy is applied to the forwarding table, allowing traffic to be distributed across multiple equal-cost paths installed by BGP.
* B. The multipath multiple-as configuration must be configured for each peer in the BGP spine group.
* The multipath multiple-as statement is already configured under the spine group, and it applies to all neighbors in that group (172.16.1.5 and 172.16.1.17). There’s no need to configure it per peer, as the group-level configuration is sufficient. This option is incorrect because the required setting is already in place.
* C. The load-balance policy must be applied as an export policy to your BGP.
* Applying the load-balance policy as a BGP export policy (e.g., export load-balance under the BGP group) would affect the routes advertised to the spine devices. However, the load-balance per-packet action is a forwarding action, not a route advertisement action. Applying it as a BGP export policy would not achieve the desired load balancing for traffic forwarding and is incorrect.
* D. The load-balance policy must have a from statement that matches on protocol bgp.
* The load-balance policy currently applies the load-balance per-packet action unconditionally (no from statement). Adding a from protocol bgp condition would make the policy apply only to BGP routes, but this is unnecessary in this context. The policy needs to be applied to the forwarding table to affect traffic, not modified with a from statement. This option doesn’t address the core issue of applying the policy.
Step 4: Determine the Correct Answer
The key issue is that the load-balance policy is defined but not applied. For load balancing to work, it must be applied to the forwarding table under routing-options. This matchesOption A:
* A. The load-balance policy must be applied to the forwarding table under the routing-options hierarchy.
Step 5: Provide Official Juniper Documentation Reference
Since I don’t have direct access to Juniper’s proprietary documents, I can provide an explanation based on standard Junos documentation practices and publicly available resources, such as the Juniper TechLibrary, which is the official source for Junos configuration guides.
In Juniper’s official documentation, specifically in theJunos OS Routing Protocols and Policies Configuration Guide, the process for enabling load balancing is described as follows:
* Load Balancing in Junos: To enable per-flow load balancing across multiple paths, you must define a policy with the load-balance per-packet action and apply it to the forwarding table. The relevant configuration hierarchy is:
routing-options {
forwarding-table {
export <policy-name>;
}
}
* Explanation from Documentation: The load-balance per-packet action (which performs per-flow balancing) requires the policy to be applied at the forwarding-table level to influence how traffic is distributed across multiple paths in the forwarding table. Without this, even if BGP installs multiple paths (via multipath), the forwarding engine will not load-balance traffic.
This aligns with the JNCIP-DC exam objectives, which include understanding how to configure and troubleshoot load balancing in an IP fabric, such as applying policies for traffic distribution.
