Download Fortinet NSE7_SDW-6.4 Mock Test Study Material

NSE7_SDW-6.4 Questions Prepare with Learning Information

The Fortinet NSE7_SDW-6.4 exam is a certification exam that tests the skills and knowledge of IT professionals in the area of software-defined wide area network (SD-WAN) technology. The exam is designed to evaluate the ability of candidates to design, implement, and manage an SD-WAN solution using Fortinet technologies. Successful completion of the exam leads to the Fortinet NSE 7 – SD-WAN 6.4 certification, which demonstrates a high level of expertise in the field of SD-WAN.

QUESTION 20
Refer to the exhibits.

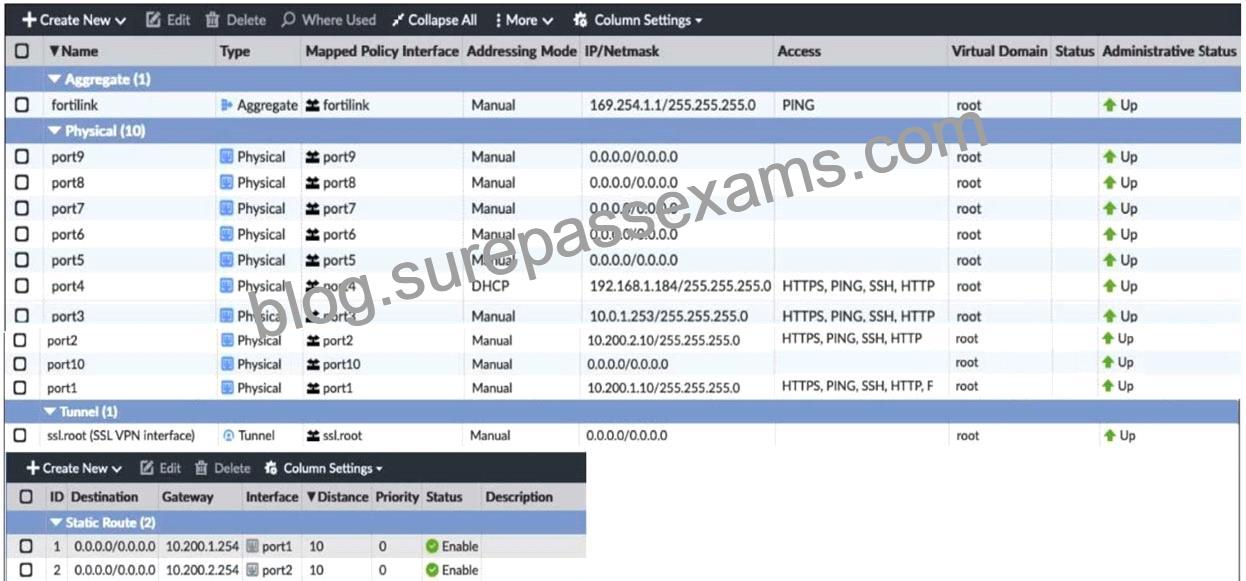

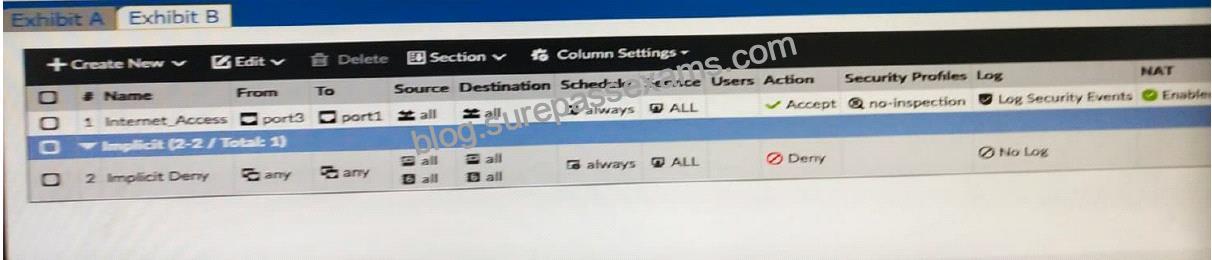

ExhibitA shows the system interface with the static routes and exhibit B shows the firewall policies on the managed FortiGate.
Based on the FortiGate configuration shown in the exhibits, what issue might you encounter when creating an SD-WAN zone for port1 and port2?

port2 is referenced in a static route.

port1 is assigned a manual IP address.

port1 and port2 are not administratively down.

port1 is referenced in a firewall policy.

QUESTION 21
Which statement reflects how BGP tags work with SD-WAN rules?

BGP tags match the SD-WAN rule based on the order that these rules were installed.

BGP tags require that the adding of static routes be enabled on all ADVPN interfaces

Route tags are used for a BGP community and the SD-WAN rules are assigned the same tag

VPN topologies are formed using only BGP dynamic routing with SD-WAN

QUESTION 22
What would best describe the SD-WAN traffic shaping mode that bases itself on a percentage of available bandwidth?

Per-IP shaping mode

Reverse policy shaping mode

Interface-based shaping mode

Shared policy shaping mode

QUESTION 23
Refer to exhibits.
Exhibit A.

Exhibit B.

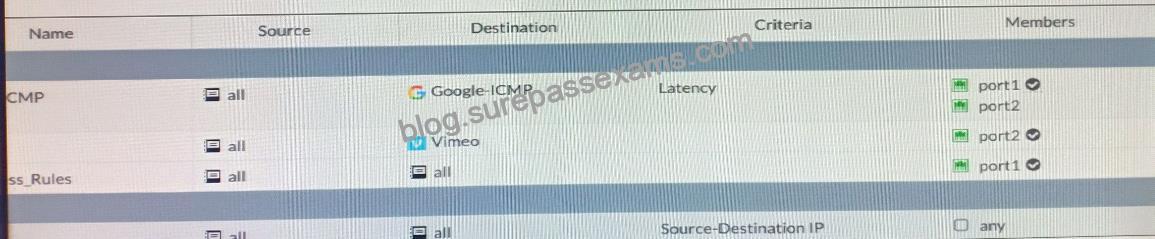

Exhibit A shows the SD-WAN rules and exhibit B shows the traffic logs. The SD-WAN traffic logs reflect how FortiGate processed traffic.
Which two statements about how the configured SD-WAN rules are processing traffic are true? (Choose two.)

SD-WAN rules are evaluated in the same way as firewall policies: from top to bottom

The All_Access_Rules rule load balances Vimeo application traffic among SD-WAN member interfaces

The implicit rule overrides all other rules because parameters widely cover sources and destinations.

The initial session of an application goes through a learning phase in order to apply the correct rule

QUESTION 24
Refer to the exhibit.

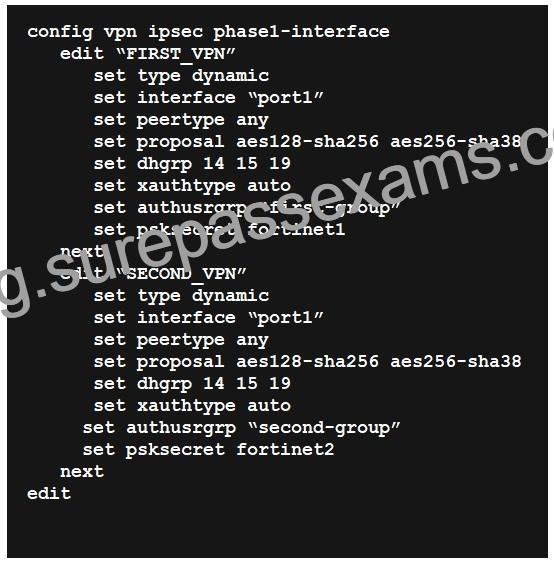

FortiGate has multiple dial-up VPN interfaces incoming on port1 that match only FIRST_VPN.
Which two configuration changes must be made to both IPsec VPN interfaces to allow incoming connections to match all possible IPsec dial-up interfaces? (Choose two.)

Specify a unique peer ID for each dial-up VPN interface.

Use different proposals are used between the interfaces.

Configure the IKE mode to be aggressive mode.

Use unique Diffie Hellman groups on each VPN interface.

QUESTION 25
Refer to exhibits.
Exhibit A.

Exhibit B.

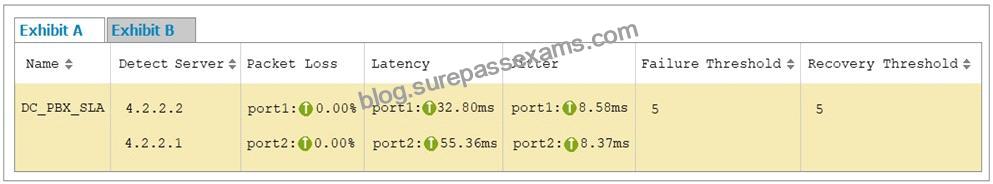

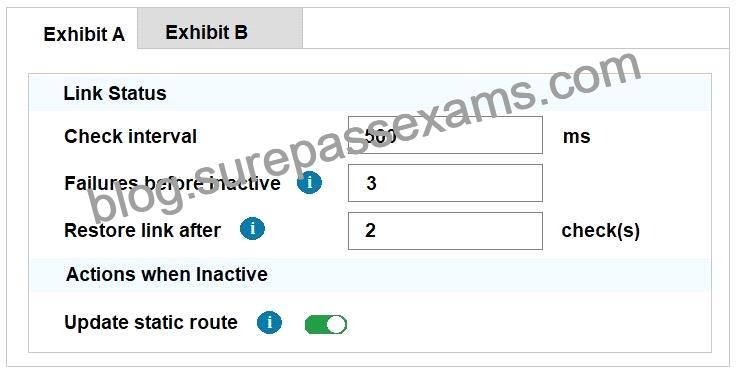

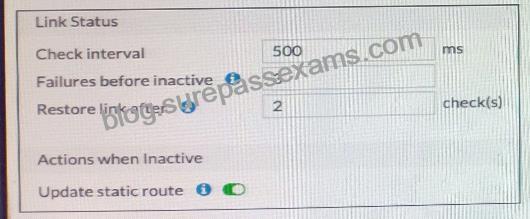

Exhibit A, which shows the SD-WAN performance SLA and exhibit B shows the health of the participating SD-WAN members.
Based on the exhibits, which statement is correct?

The dead member interface stays unavailable until an administrator manually brings the interface back.

The SLA state of port2 has exceeded three consecutive unanswered requests from the SLA server.

Port2 needs to wait 500 milliseconds to change the status from alive to dead.

Check interval is the time to wait before a packet sent by a member interface considered as lost.

QUESTION 26
Which diagnostic command can you use to show the SD-WAN rules interface information and state?

diagnose sys virtual-wan-link neighbor.

diagnose sys virtual-wan-link route-tag-list

diagnose sys virtual-wan-link member.

diagnose sys virtual-wan-link service

QUESTION 27
Refer to exhibits.
Exhibit A.

Exhibit B.

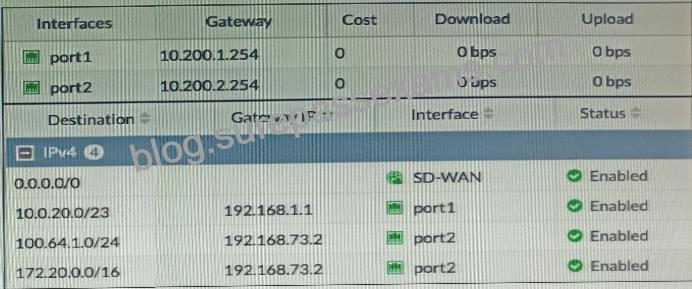

Exhibit A shows the SD-WAN performance SLA and exhibit B shows the SO-WAN interface and the static routes configuration.
Port1 and port2 are member interfaces of the SD-WAN, and port2 becomes a dead member after reaching the failure thresholds Which statement about the dead member is correct?

Subnets 100 .64.1.0/23 and 172 . 20 . 0. 0/16 are reachable only through port1

SD-WAN interface becomes disabled and port1 becomes the WAN interface

Dead members require manual administrator access to bring them back alive

Port2 might become alive when a single response is received from an SLA server

QUESTION 28
Which three protocols are available only on the command line to configure as performance SLA status check? (Choose three.)

smtp

tcp-echo

twamp

udp-echo

icmp

QUESTION 29
Refer to exhibits.

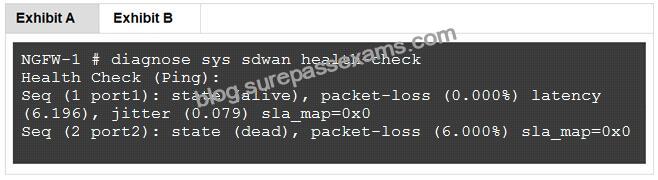

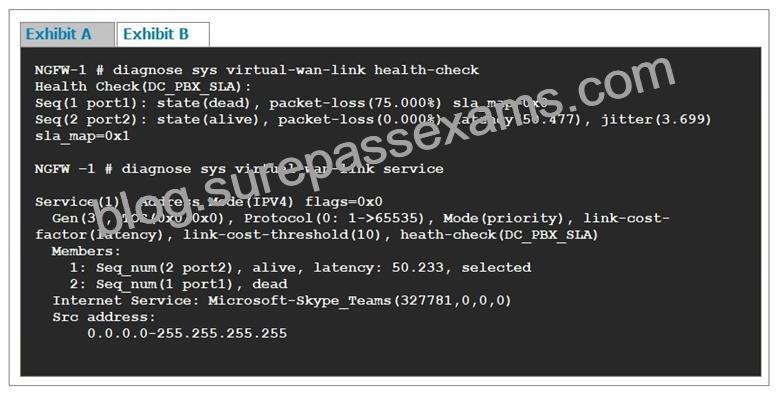

Exhibit A shows the performance SLA exhibit B shows the SD-WAN diagnostics output.
Based on the exhibits, which statement is correct?

Both SD-WAN member interfaces have used separate SLA targets.

The SLA state of port1 is dead after five unanswered requests by the SLA servers.

Port1 became dead 1ecause no traffic was offload through the egress of port1.

SD-WAN member interfaces are affected by the SLA state of the inactive interface

QUESTION 30

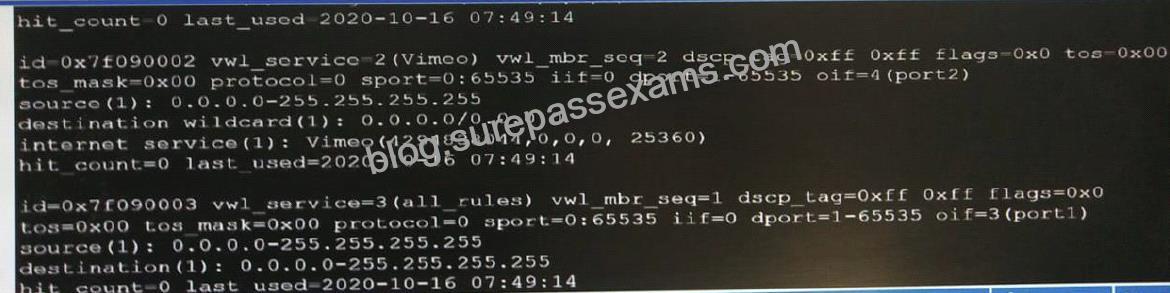

Refer to the exhibit.

Based on the output, which two statements are true? (Choose two )

The diagnostic output presents only of the policy routes

The all_rules rule is the implicit SD-WAN rule in place

There is more than one SD-WAN rule configured

At least one policy route is implemented and in effect

QUESTION 31
Which two statements reflect the benefits of implementing the ADVPN solution to replace conventional VPN topologies? (Choose two )

It creates redundant tunnels between hub-and-spokes, in case failure takes place on the primary links.

It dynamically assigns cost and weight between the hub and the spokes, based on the physical distance.

It ensures that spoke-to-spoke traffic no longer needs to flow through the tunnels through the hub.

It provides direct connectivity between all sites by creating on-demand tunnels between spokes.

QUESTION 32
Which diagnostic command you can use to show interface-specific SLA logs for the last 10 minutes?

diagnose sys virtual-wan-link health-check

diagnose sys virtual-wan-link log

diagnose sys virtual-wan-link sla-lcg

diagnose sys virtual-wan-link intf-sla-log

QUESTION 33
Which three performance SLA protocols are available on the FortiGate CLI only? (Choose three.)

tcp-echo

icmp

twamp

udp-echo

smtp

QUESTION 34
Refer to exhibits.

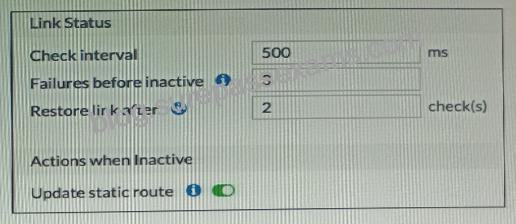

Exhibit A, which shows the SD-WAN performance SLA and exhibit B shows the health of the participating SD-WAN members.
Based on the exhibits, which statement is correct?

The dead member interface stays unavailable until an administrator manually brings the interface back.

Port2 needs to wait 500 milliseconds to change the status from alive to dead.

Static routes using port2 are active in the routing table.

FortiGate has not received three consecutive requests from the SLA server configured for port2.

QUESTION 35
Refer to the exhibit.

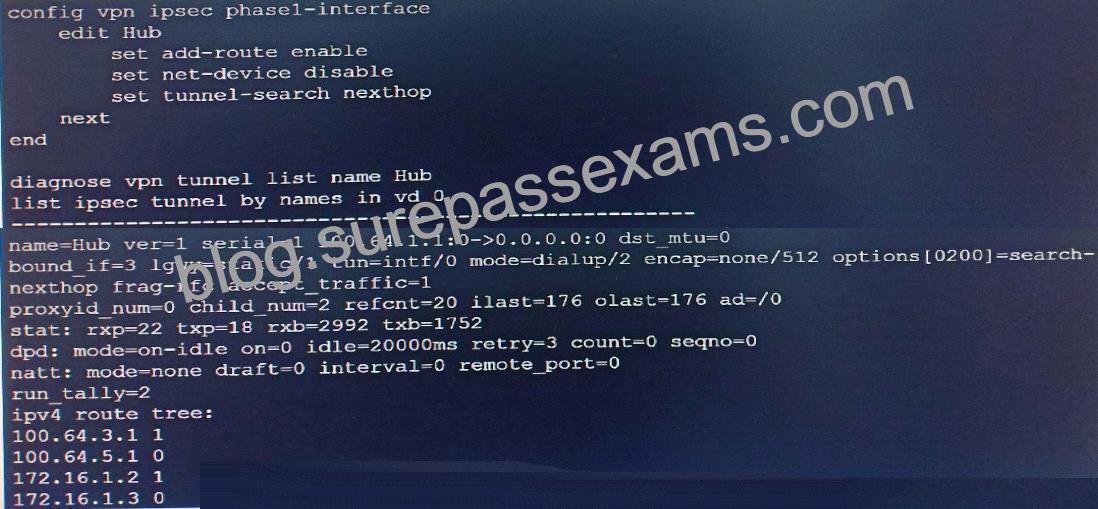

Which two statements about the status of the VPN tunnel are true? <Choose two )

There are separate virtual interfaces for each dial-up client.

VPN static routes are prevented from populating the FortiGate routing table.

FortiGate created a single IPsec virtual interface that is shared by all clients.

100.64.3.1 is one of the remote IP address that comes through index interface 1.

QUESTION 36
Refer to exhibits.
Exhibit A.

Exhibit B.

Exhibit A, which shows the SD-WAN performance SLA and exhibit B shows the health of the participating SD-WAN members.
Based on the exhibits, which statement is correct?

The dead member interface stays unavailable until an administrator manually brings the interface back.

The SLA state of port2 has exceeded three consecutive unanswered requests from the SLA server.

Port2 needs to wait 500 milliseconds to change the status from alive to dead.

Check interval is the time to wait before a packet sent by a member interface considered as lost.

QUESTION 37
Refer to exhibits.

Exhibit A shows the performance SLA exhibit B shows the SD-WAN diagnostics output.
Based on the exhibits, which statement is correct?

Both SD-WAN member interfaces have used separate SLA targets.

The SLA state of port1 is dead after five unanswered requests by the SLA servers.

Port1 became dead 1ecause no traffic was offload through the egress of port1.

SD-WAN member interfaces are affected by the SLA state of the inactive interface

QUESTION 38
Which diagnostic command you can use to show interface-specific SLA logs for the last 10 minutes?

diagnose sys virtual-wan-link health-check

diagnose sys virtual-wan-link log

diagnose sys virtual-wan-link sla-log

diagnose sys virtual-wan-link intf-sla-log

QUESTION 39
What are two roles that SD-WAN orchestrator plays when it works with FortiManager? (Choose two.)

It configures and monitors SD-WAN networks on FortiGate devices that are managed by FortiManager.

It acts as a standalone device to assist FortiManager to manage SD-WAN interfaces on the managed FortiGate devices.

It acts as a hub FortiGate with an SD-WAN interface enabled and managed along with other FortiGate devices by FortiManager.

It acts as an application that is released and signed by Fortinet to run as a part of management extensions on FortiManager.

QUESTION 40
In the default SD-WAN minimum configuration, which two statements are correct when traffic matches the default implicit SD-WAN rule? (Choose two )

Traffic has matched none of the FortiGate policy routes

Matched traffic failed RPF and was caught by the rule.

An absolute SD-WAN rule was defined and matched traffic

The FIB lookup resolved interface was the SD-WAN member interface

QUESTION 41
Refer to the exhibit.

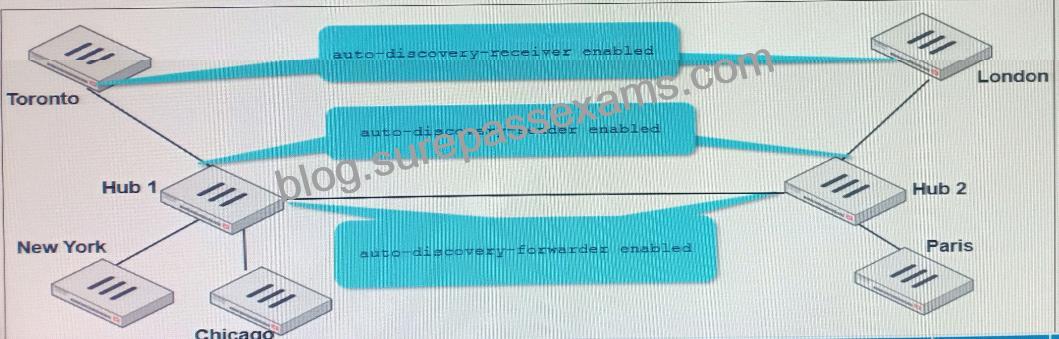

Multiple IPsec VPNs are formed between two hub-and-spokes groups, and site-to-site between Hub 1 and Hub 2 The administrator configured ADVPN on the dual regions topology

Which two statements are correct if a user in Toronto sends traffic to London? (Choose two )

Toronto needs to establish a site-to-site tunnel with Hub 2 to bypass Hub 1.

The first packets from Toronto to London are routed through Hub 1 then to Hub 2.

London generates an IKE information message that contains the Toronto public IP address.

Traffic from Toronto to London triggers the dynamic negotiation of a direct site-to-site VPN.

QUESTION 42
Refer to the exhibit.

Which two statements about the debug output are correct? (Choose two )

FortiGate provides statistics and readings based on historical traffic logs.

This traffic shaper drops traffic that exceeds the set limits.

The debug output shows per-lP shaper values and real-time readings.

Traffic being controlled by the traffic shaper is under 1 Kbps

QUESTION 43
Which diagnostic command can you use to show the SD-WAN rules interface information and state?

diagnose sys virtual-wan-link neighbor.

diagnose sys virtual-wan-link route-tag-list

diagnose sys virtual-wan-link member.

diagnose sys virtual-wan-link service

QUESTION 44
Refer to exhibits

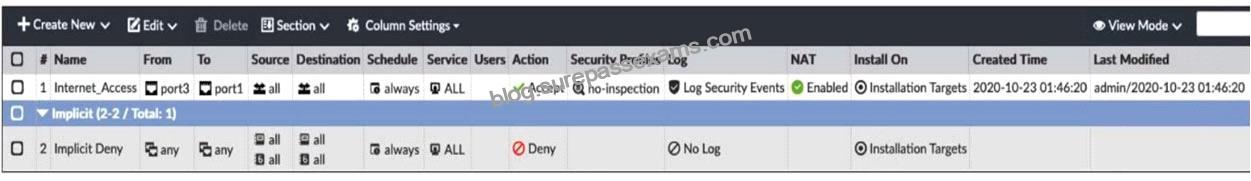

Exhibit A shows the system interface with the static routes and exhibit B shows the firewall policies on the managed FortiGate Based on the FortiGate configuration shown in the exhibits, what are two issues you might encounter when creating an SD-WAN interface on port1 and port2? {Choose two )

Member interfaces that are administratively down

Member interface that have IP address of 0.0.0.0/0.0.0.0

Member interfaces that are physical interfaces as well as VLAN aggregate, and iPsec interfaces

Member interfaces that are referenced by any other configuration element

Fortinet NSE7_SDW-6.4 Exam Syllabus Topics:

Topic	Details
Topic 1	Configure SD-WAN rules Troubleshoot VPN and ADVPN
Topic 2	Implement a full or partially meshed redundant VPN infrastructure SD-WAN configuration
Topic 3	Troubleshoot central management problems Troubleshoot SD-WAN
